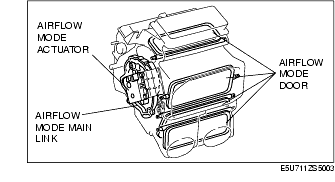

AIR DIST (DISTRIBUTION) UNIT CONSTRUCTION
id071100638500
• Composed of the following parts:
-
- Airflow mode actuator
-
- Airflow mode main link
-
- Airflow mode door

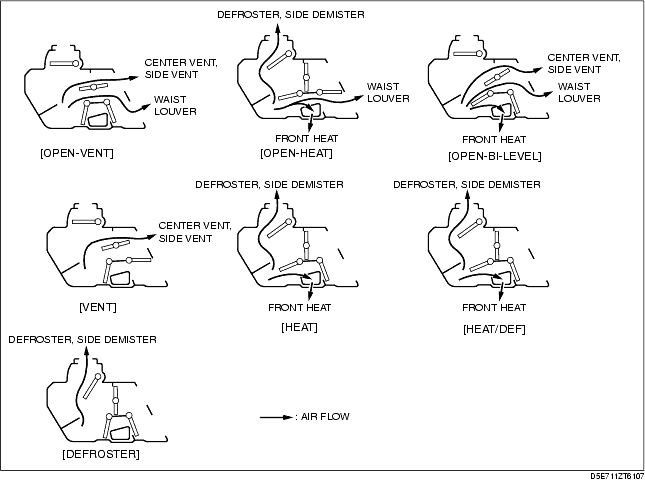

Airflow Mode Door Operation
• The airflow mode doors move to the OPEN-VENT, OPEN-BI-LEVEL, OPEN-HEAT, VENT HEAT, HEAT/DEF or DEFROSTER position, depending on the position of the airflow mode control dial. As a result, the airflow mode changes.
Airflow Distribution
|
AIRFLOW MODE
|
AIRFLOW RATE (%)
|
|
VENT
|
WAIST
|
HEAT
|
DEFROSTER
|
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
|
SIDE
|
CENTER
|
CENTER
|
SIDE
|
SIDE
|
CENTER
|
CENTER
|
SIDE
|
|
OPEN-VENT
|
21.25
|
21.25
|
21.25
|
21.25
|
7.5
|
7.5
|
-
|
-
|
-
|
-
|
-
|
-
|
|
OPEN-BI-LEVEL
|
12.5
|
12.5
|
12.5
|
12.5
|
7.5
|
7.5
|
17.5
|
17.5
|
-
|
-
|
-
|
-
|
|
OPEN-HEAT
|
-
|
-
|
-
|
-
|
12.5
|
12.5
|
25
|
25
|
2.5
|
16.25
|
2.5
|
3.75
|
|
VENT
|
25
|
25
|
25
|
25
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
HEAT
|
-
|
-
|
-
|
-
|
-
|
-
|
35
|
35
|
4.5
|
3
|
19.5
|
3
|
|
HEAT/DEF
|
-
|
-
|
-
|
-
|
-
|
-
|
25
|
25
|
7.5
|
7.5
|
27.5
|
7.5
|
|
DEFROSTER
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
15
|
20
|
50
|
15
|
