AIR DIST (DISTRIBUTION) UNIT DISASSEMBLY/ASSEMBLY

id071100807000

1. Disassemble in the order indicated in the table.

Caution

• If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

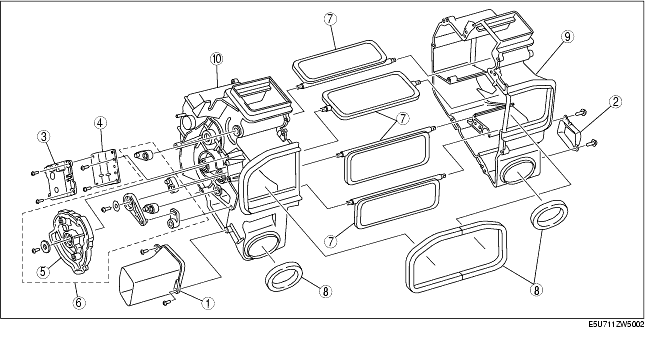

L.H.D.

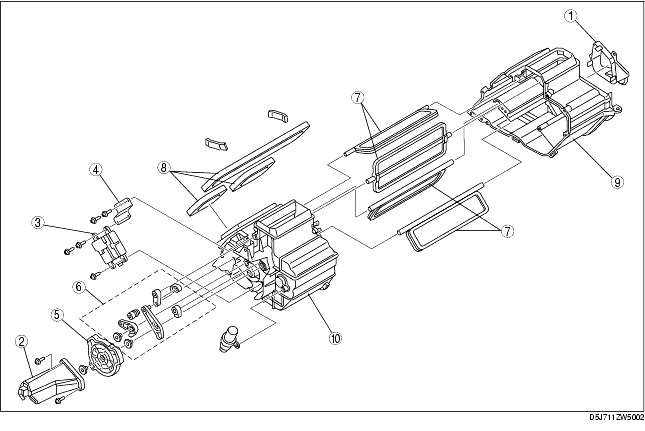

R.H.D.


1	Duct (1)
2	Duct (2)
3	Airflow mode actuator
4	Bracket
5	Airflow mode main link
6	Airflow mode link set
7	Airflow mode door
8	Polyurethane form
9	Case (1)
10	Case (2)

2. Assemble in the reverse order of disassembly.
