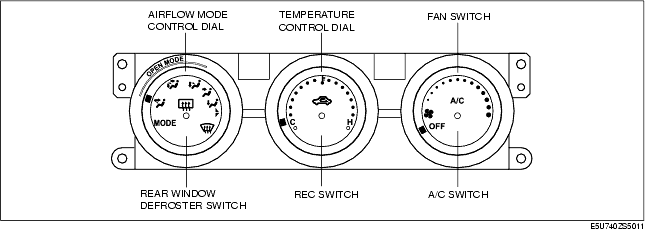

CLIMATE CONTROL UNIT CONSTRUCTION [MANUAL AIR CONDITIONER]

• Composed of the following parts:

- Fan switch

- Airflow mode control dial

- REC switch

- A/C switch

- Temperature control dial

- Rear window defroster switch

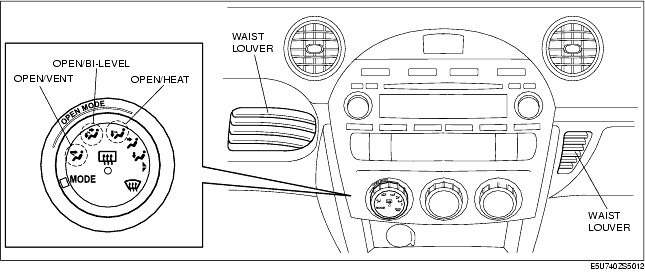

• Hot or cold air is blown from the waist louver beside the audio when any mode position (OPEN-VENT, OPEN-BI-LEVEL, OPEN-HEAT) is selected.
