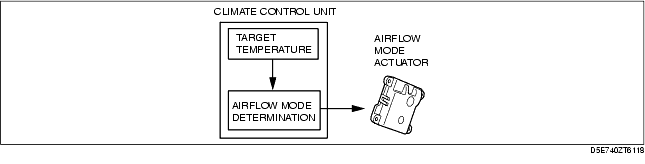

• The climate control unit calculates the mode actuator opening angle (airflow mode) based on the target temperature operating the actuator.
MAX HOT and MAX COLD correction
• When the set temperature is at 29, the airflow mode is set to HEAT, when it is at 15, it is set to vent.
• The airflow mode can be switched by operating the airflow mode dial.
