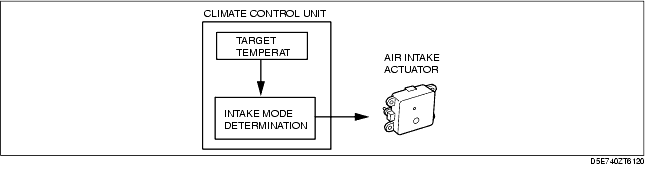

• The climate control unit calculates the air intake actuator angle (air intake mode) based on the target temperature and operates the actuator.
Defroster correction
• When the airflow mode is turned to the defroster, the air intake is fixed at fresh air intake to improve defrosting.
• The air intake mode can be switched by operation of the REC switch.
|
Air intake mode
|
REC switch operation
|
|---|---|
|
FRESH
|
Sets to FRESH when REC switch is turned on during REC mode.
|
|
REC
|
Sets to REC when REC switch is turned on during FRESH mode.
|
