MAGNETIC CLUTCH ADJUSTMENT

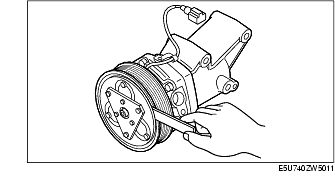

1. Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a thickness gauge.

2. Inspect the clearance.

• If not within the specification, adjust the clearance by changing the shim or the number of shims.

Magnetic clutch clearance

0.3-0.6 mm {0.012-0.023 in}
