MAGNETIC CLUTCH INSPECTION

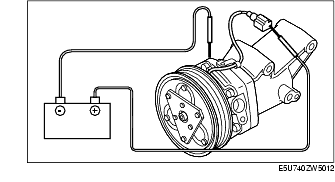

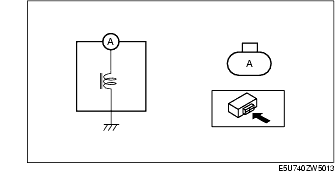

1. Connect battery positive voltage to magnetic clutch terminal A and ground.

2. Verify that the magnetic clutch turns on.

• If the magnetic clutch does not turn on, replace the A/C compressor.
