BLOWER MOTOR REMOVAL/INSTALLATION


id074000800900

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the front side trim. (R.H.D.) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

4. Remove in the order indicated in the table.

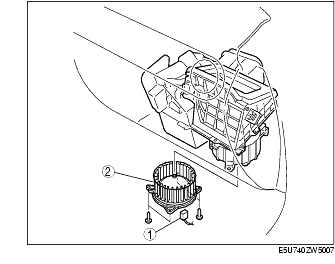

L.H.D.

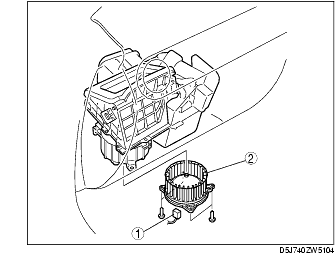

R.H.D.

1
Blower motor connector
2
Blower motor

5. Install in the reverse order of removal.
