CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION


id074000807800

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

3. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

4. Remove in the order indicated in the table.

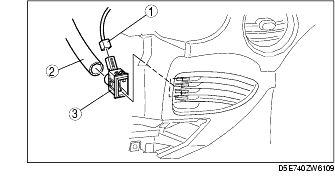

L.H.D.

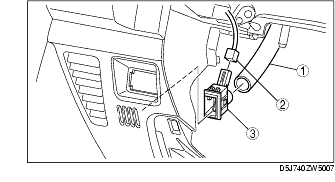

R.H.D.

1
Air hose
2
Cabin temperature sensor connector
3
Cabin temperature sensor

5. Install in the reverse order of removal.
