1. Turn the ignition switch to the LOCK position.
2. Remove the battery cover.
3. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
4. Remove the seat. (See SEAT REMOVAL/INSTALLATION.)

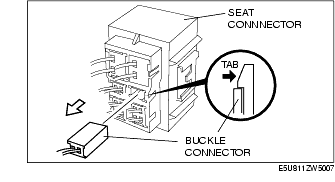

5. Detach the tab as shown in the figure and remove the connector from the seat connector.

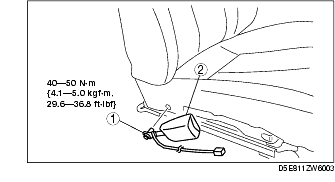

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
