SUPPLIER IDENTIFICATION PROCEDURE
id0902d8358400
-
Note
-
• The supplier can vary with the module. When asking the supplier (service center) for repair or replacement, identify the supplier and fill in the Audio Repair Order Form with the following procedures.
Identification Using the Label or Inscribed Lettering
1. Remove the audio unit.
2. Verify the supplier by referring to the label attached to each unit.
Identification Using the On-board Diagnostic Test Mode.
1. Start the on-board diagnostic test mode.

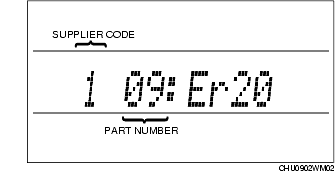

2. Identify the device and supplier codes by referring to the information display.
-
Note
-
• If no DTC is stored, no codes will be displayed.
Supplier code
|
Supplier name
|
1
|
SANYO Automedia
|
2
|
Panasonic
|
3
|
Clarion
|
4
|
Pioneer
|
Part number
|
Part name
|
03
|
CD player
|
05
|
CD changer (external)
|
06
|
CD changer (upper module)
|
07
|
MD player (lower module)
|
09
|
Base unit
|
10
|
MP3 applicable CD player system
|
21
|
Center panel
|
22
|
MP3 applicable CD changer (upper module)
|
