FOREWORD [RADIO]

id0903a3822600

Note
• If the case location, time, and broadcasting station etc. can be specified through interview with the customer, there is the possibility that the signal reception environment is the cause of the problem.
•  Perform confirmation of the symptom and evaluate under the conditions that the customer reported (location, time, broadcasting station etc.). If this is not possible, perform it under equivalent conditions.
• Before inspection or repair, record the broadcasting stations that customer has preset and reset them accordingly after the inspection or repair. Adjust the clock too.

Troubleshooting Index

No.

Symptom

Possible DTC

1
No radio reception (AM/FM)/No or low volume
09:Er20, 09:Er22
2
Noise from radio (AM only)
09:Er22
3
Noise from radio (FM only)
09:Er22
4
Cannot tune (SEEK does not stop)
09:Er20, 09:Er22
5
Cannot preset (preset function does not operate)
21:Er19
6
Reception frequency of radio slips
09:Er22

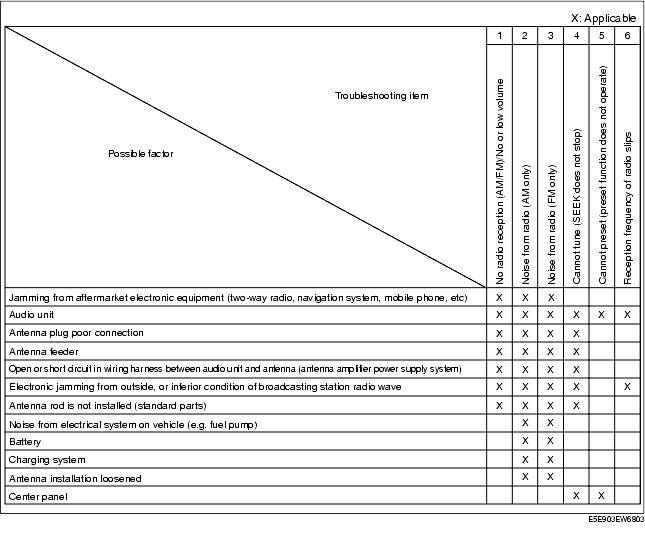

Quick Diagnostic Chart (Radio)
