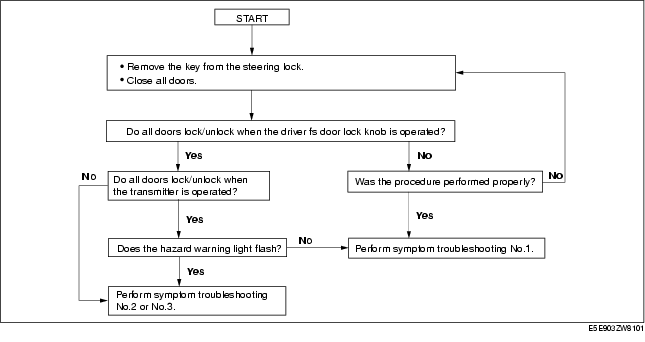

KEYLESS ENTRY SYSTEM MALFUNCTION DIAGNOSIS


id0903d2832100

Applied VIN (assumed):
• JMZ NC1882*# 100001-103859
• JMZ NC18820# 100001-103859
• JMZ NC18F2*# 100001-103859
• JMZ NC18F20# 100001-103859
• JMZ NC18F6*# 100001-103859
• JMZ NC18F60# 100001-103859
• JM0 NC30F100 100001-100545
Note
• When the trunk lid opener cancel switch is at the ON position, the trunk lid does not unlock even when the trunk lid button is pressed. Verify that the trunk lid cancel switch is at the OFF position when performing the on-board diagnostic test.
• The trunk lid opener cancel switch is located in the trunk compartment.
• "All doors" includes the trunk lid.
