FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000405200
1. To disassemble the front bumper, remove the following parts:
-
(1) Front fog lights (Vehicles with the front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

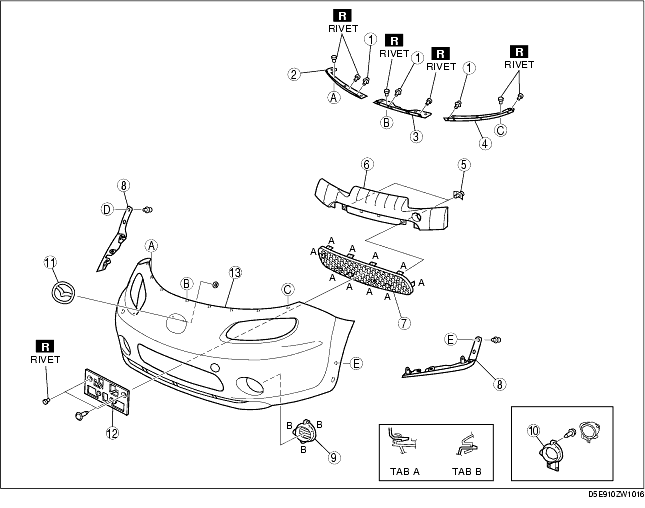

2. Disassemble in the order indicated in the table.
|
1
|
Fastener
|
|
2
|
Set plate RH
|
|
3
|
Set plate CTR
|
|
4
|
Set plate LH
|
|
5
|
Clip
|
|
6
|
Energy absorbing form
|
|
7
|
Front bumper mesh
|
|
8
|
Air dam skirt
|
|
9
|
Lamp hole cover (Vehicles without the front fog lights)
|
|
10
|
Lamp hole cover (Vehicles with the front fog lights)
|
|
11
|
Ornament
|
|
12
|
License plate holder
|
|
13
|
Front bumper fascia
|
3. Assemble in the reverse order of disassembly.
