FRONT FENDER PANEL REMOVAL/INSTALLATION


id091000405900

1. Disconnect the negative battery cable. (SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3. Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

4. Remove the side step molding (SeeSIDE STEP MOLDING REMOVAL.) (SeeSIDE STEP MOLDING INSTALLATION.)

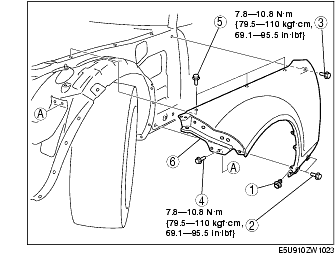

5. Remove in the order indicated in the table.

1
Fastener
2
Bolt A
3
Bolt B
4
Bolt C
5
Bolt D
6
Front fender panel

6. Install in the reverse order of removal.
