DOOR UNIT REMOVAL/INSTALLATION


id091100805000

1. Disconnect the negative battery cable.(SeeBATTERY REMOVAL/INSTALLATION [L8, LF].)

2. Remove the following parts:

(1) Door trim (See DOOR TRIM REMOVAL/INSTALLATION.)
(2) Door speaker (See DOOR SPEAKER REMOVAL/INSTALLATION.)

3. Disconnect the power outer mirror harness connector.

4. Disconnect the door lock actuator connector.

5. Disconnect the power window motor connector.

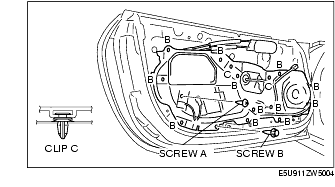

6. Remove screws A and B.

7. pull the door unit outward and detach clips C.

8. Remove the door unit.

9. Install in the reverse order of removal.
