POWER WINDOW MOTOR INSPECTION
id091200417000

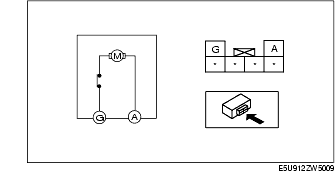

1. Apply battery positive voltage to the power window motor terminals, and inspect the power window motor operation.
-
• If the power window motor does not operate as indicated in the table, replace it.
|
Operation
|
Terminal
|
|
G
|
A
|
|
Open
|
Ground
|
B+
|
|
Close
|
B+
|
Ground
|
