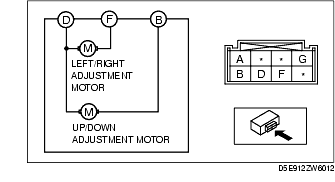

1. Apply battery positive voltage and connect the ground to the corresponding power outer mirror terminals, and then inspect the operation of the power outer mirror.
• If not as specified, replace the power outer mirror.
Operation
Terminal
B+
GND
Up
B
D
Down
D
B
Left
F
D
Right
D
F

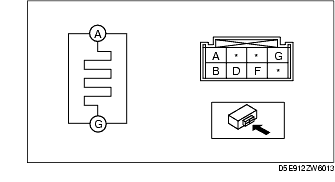

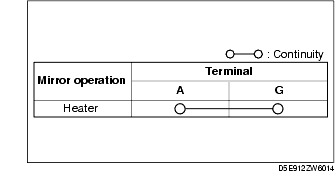

2. Inspect for continuity between the power outer mirror heater terminals.
• If not as specified, replace the power outer mirror.
