REARVIEW MIRROR REMOVAL/INSTALLATION


id091200803100

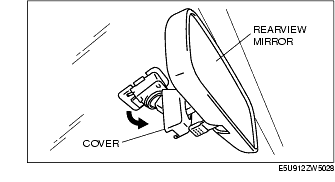

Type A

1. Remove the cover.

2. Depress the clip, and then remove the rearview mirror by pulling upward.

3. Install in the reverse order of removal.

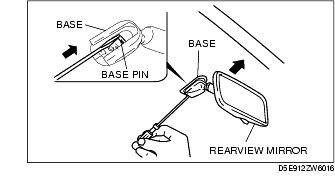

Type B

1. Insert a flathead screwdriver between the mirror and the base.

2. Push the base pin down to remove the rearview mirror.

3. Install the rearview mirror onto the base.
