KEYLESS CONTROL MODULE CONFIGULATION [WITH ADVANCED KEYLESS SYSTEM]

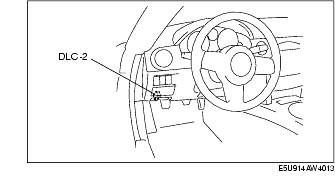

1. Connect the M-MDS to the DLC-2 connector.

2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

• When using the IDS (laptop PC)

1. Select "Module Programming".

• When using the PDS (Pocket PC)

1. Select "Programming".

2. Select "Module Programming".

3. Then, select the "Programmable Module Installation" and "RKE" from the screen menu.

4. Perform the configuration according to the directions on the screen.

5. Retrieve DTCs using the M-MDS, then verify if DTCs are present.

• If a DTC is present, perform the applicable DTC inspection. (See DTC TABLE [ADVANCED KEYLESS SYSTEM].)
