SECURITY ACCESS PROCEDURE

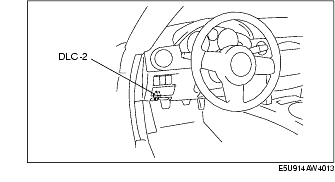

1. Connect the M-MDS to the DLC-2.

2. Select "Body/Security/PATS Function" from the M-MDS screen menu.

3. Select the items to be performed from the following:

• Program Additional card key

• Card Key Code Erase

• Steering Lock Unit Programming

• Program additional ignition key (with immobilizer system)

• Ignition Key Code Erase (with immobilizer system)

• Customer Spare Key Programming Enable (with immobilizer system)

• Customer Spare Key Programming Disable (with immobilizer system)

• Parameter Reset

4. The security access begins and the M-MDS displays the "OUT-CODE".

Note

• When "OUT-CODE" is first displayed, turning the ignition switch from the LOCK to the ON position 5 times will change the "OUT-CODE".

5. Input "IN-CODE" corresponding to "OUT-CODE" displayed on the M-MDS screen.

6. If the security access is successful, selected item can be performed.
