TRUNK LID OPENER INSPECTION

id091400811400

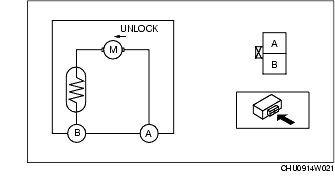

1. Apply battery positive voltage and connect the ground to the corresponding the trunk lid opener terminals, and inspect the trunk lid opener operation.

• If the trunk lid opener does not operate as indicated in the table, replace the trunk lid opener.


Operation	Terminal
Operation	A	B
Unlocks	B+	Ground
