DOOR LOCK ACTUATOR INSPECTION

id091400817400

Door Lock Actuator

With double lock

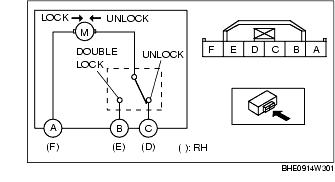

Apply battery positive voltage to the front door lock actuator terminals and inspect the operation of the front door lock actuator.

• If not as specified, replace the front door lock actuator.

Actuator operation

Connection

B+

GND

Lock
A
(F)
C
(D)
Double lock
A
(F)
B
(E)
Unlock
C and B
(D and E)
A
(F)

( ) :
RH

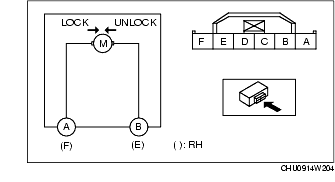

Without double lock

1. Disconnect the door lock actuator connector.

2. Apply battery positive voltage and connect the ground to the corresponding door lock actuator terminals and inspect the door lock actuator operation.

• If not as specified, replace the door lock actuator.

Actuator operation

Connection

B+

GND

Lock
A
(F)
B
(E)
Unlock
B
(E)
A
(F)

( ) :
RH

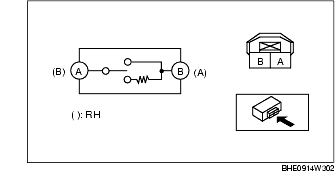

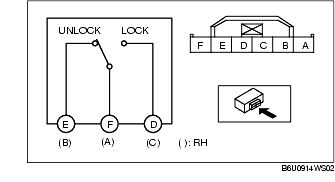

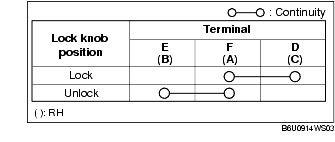

Door Lock-link Switch

1. Disconnect the door lock actuator connector.

2. Inspect for continuity between the door lock-link switch terminals.

• If not as specified, replace the door lock actuator.

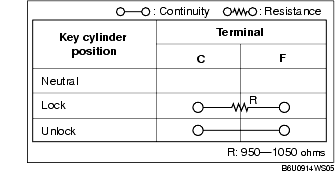

Door Key Cylinder Switch

With double lock

1. Disconnect the front door lock actuator connector.

2. Inspect for continuity between the door lock-link switch terminals.

• If not as specified, replace the front door lock actuator.

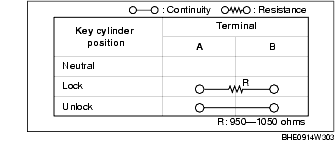

Without double lock

1. Disconnect the door lock actuator connector.

2. Inspect for continuity between the door lock-link switch terminals.

• If not as specified, replace the door lock actuator.
