POWER DOOR LOCK SYSTEM OPERATION


id0914b3501600

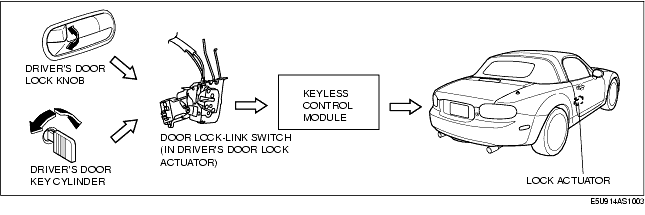

• When the driver's door is locked/unlocked with the driver's door lock knob or key cylinder, the door lock-link switch in the door lock actuator is locked/unlocked via the rod.

• The keyless control module activates each lock actuator to lock/unlock according to the lock/unlock signal from the door lock-link switch.
