- - Any metallic object
- - Spare keys or keys for other vehicles equipped with an immobilizer system
-
- Any electronic device, or any credit or other cards with magnetic strips
• The immobilizer system is a vehicle theft prevention device that only allows keys that have previously been programmed to the vehicle to start the engine. It functions to prevent theft by means such as a forged key or hotwiring.

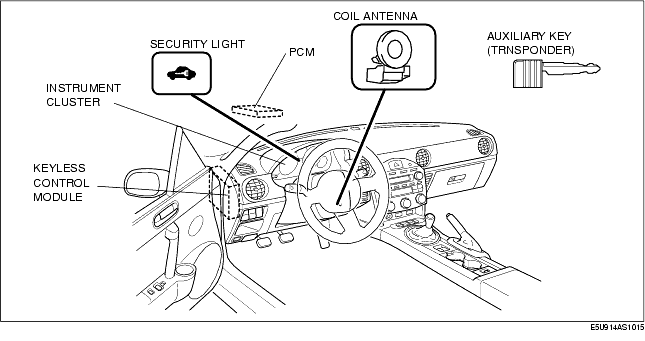

• The system consists of the key (with built-in transponder), coil antenna, PCM, instrument cluster, and keyless control module.
• The immobilizer system activates automatically when the start knob is turned to the LOCK or ACC position. (The security light in the instrument cluster flashes while the immobilizer system is activated.)
• When the start knob is pressed (push switch ON) and turned to the ON position with a previously programmed auxiliary key, the immobilizer system deactivation operation begins automatically. The engine is allowed to start only after the deactivation operation is completed successfully. (The security light illuminates for 3 s and then goes out when the immobilizer system has been deactivated.)
• The immobilizer system cannot be disabled.
• Due to immobilizer system characteristics, the engine cannot be started unless two or more keys are programmed. Therefore, when resetting the immobilizer system (PCM replacement, Keyless control module replacement, or Replacement of all programmed keys), two or more keys usable with the immobilizer system must be readied before starting the operation.
• A maximum of eight keys can be programmed to one vehicle. The PID/data monitor function can be used to verify the number of keys programmed to the vehicle.
• If there is a system malfunction or the immobilizer system is not properly deactivated due to deactivation operation failure, the malfunction location can be verified by the flashing pattern of the security light in the instrument cluster, or using the malfunction diagnosis function of the on-board diagnostic system.
