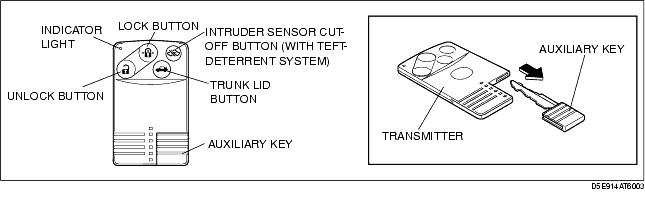

CARD KEY (TRANSMITTER) CONSTRUCTION/OPERATION


id0914b5103200

• A card-type transmitter that is thin and convenient to carry has been adopted.

• A maximum of six transmitters can be programmed for one vehicle.

• A built-in operation indicator light illuminates according to LOCK/UNLOCK button operation and request signal from the vehicle.

• In case the transmitter is inoperable due to battery depletion, the doors can be locked/unlocked and the engine can be started using the auxiliary key.

• A transponder is built into the auxiliary key for vehicles with the immobilizer system.
