FRONT BELTLINE MOLDING REMOVAL/INSTALLATION


id091600447700

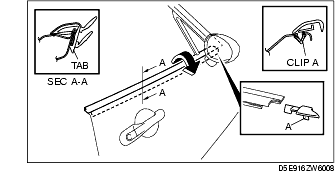

1. Fully open the door glass.

2. Remove clip A using a protective tape-wrapped flathead screwdriver.

3. Lift (partially peeling back) the front beltline molding in the direction of the arrow and remove it.

4. Install in the reverse order of removal.
