1. Remove the bolts.

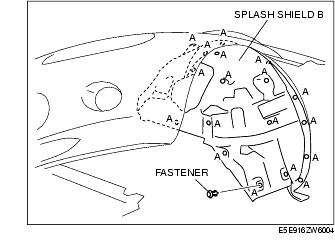

2. Remove the fasteners at section A shown in the figure.
3. Install in the reverse order of removal.
1. Remove the front suspension tower bar.
2. Remove the splash shield A.
3. Remove the front shock absorber and coil spring.
4. Remove the fasteners at section A shown in the figure.
5. Remove the splash shield B.
6. Install in the reverse order of removal.
