DECK PANEL MOTOR INSPECTION

id091600810200

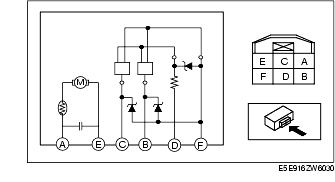

1. Apply battery positive voltage and connect the ground to deck panel motor terminals A and E, and then inspect the deck panel motor operation.

• If the deck panel motor does not operate as indicated in the table, replace it.

Caution

• If the deck panel motor temperature is high, the motor may not rotate due to the motor internal PTC function. Leave it untouched for about 3 min to cool it down, then reinspect.


Operation	Terminal
Operation	E	A
Open	Ground	B+
Close	B+	Ground

2. Connect the battery positive voltage to deck panel motor terminal D and connect terminal F to ground.

3. Operate the deck panel motor and measure the voltage at terminal B.

• If there is any malfunction, replace the deck panel motor.

Note

• Terminal C is not used for the system control.

Voltage

• Pulse:max. 13 V/min. 0 V
