POWER RETRACTABLE HARDTOP LIMIT SWITCH INSPECTION


id091600810300

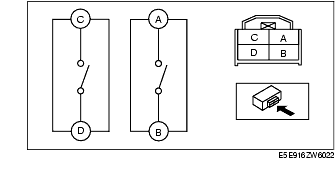

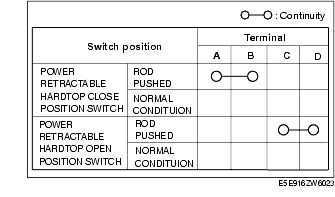

1. Verify that the continuity between the power retractable hardtop limit switch terminals is as indicated in the table.

• If not as indicated in the table, replace the roof motor link (RH). (The power retractable hardtop limit switch is integrated with the roof motor link (RH).)
