DECK PANEL LIMIT SWITCH INSPECTION


id091600811500

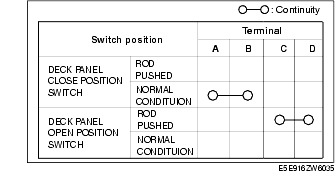

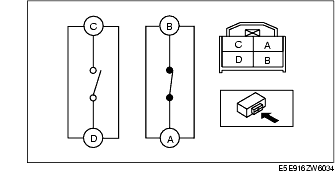

1. Verify that the continuity between the deck panel limit switch terminals is as indicated in the table.

• If not as indicated in the table, replace the deck panel link (RH).
