POWER RETRACTABLE HARDTOP SWITCH INSPECTION

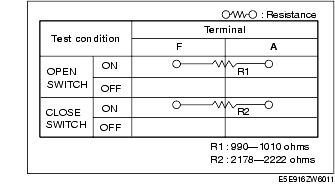

1. Verify that the continuity between the power retractable hardtop switch terminals is as indicated in the table.

• If not as indicated in the table, replace the hazard warning switch.

2. Apply battery voltage to power retractable hardtop switch terminal L, and connect terminal C to ground.

3. Verify that the LED illuminates.

•  If there is any malfunction, replace the hazard warning switch.
