GLOVE COMPARTMENT REMOVAL/INSTALLATION


id091700453800

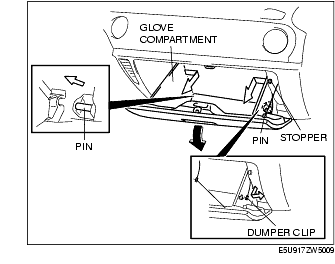

1. Remove the dumper clip.

2. Bend the stoppers inward, then remove.

3. Turn the glove compartment downward and pull the pins.

4. Remove the glove compartment.

5. Install in the reverse order of removal.
