SIDE WALL REMOVAL/INSTALLATION

Caution

• Do not pull the side wall ends outward to remove the side wall. The side wall and clips could be damaged.

Note

• The removal procedure is the same for the driver's side.

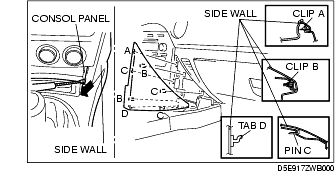

1. Insert a tape-wrapped flathead screwdriver between the side wall and console panel, and detach clips A and B, pins C, and tab D while pulling the side wall in the direction shown by the arrow.

2. Remove the side wall.

3. Install in the reverse order of removal.
