A-PILLAR TRIM REMOVAL/INSTALLATION


id091700458700

1. Remove the female wedge. (See CONVERTIBLE TOP DISASSEMBLY/ASSEMBLY.)

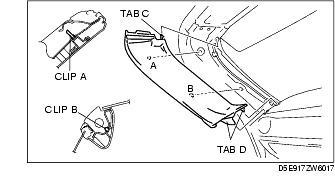

2. Pull the A-pillar trim, then disengage clips A, B and tab C.

3. Pull the A-pillar trim upward, then disengage tabs D from the body.

4. Remove the A-pillar trim.

5. Install in the reverse order of removal.
