TRUNK SIDE TRIM REMOVAL/INSTALLATION


id091700462300

1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

2. Remove the partition board. (See PARTITION BOARD REMOVAL/INSTALLATION.)

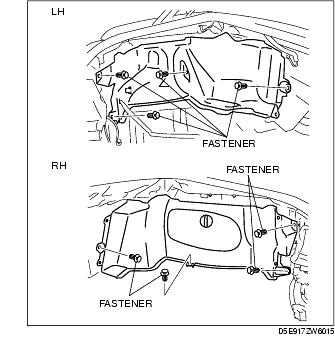

3. Remove the fasteners.

4. Remove the trunk side trim.

5. Install in the reverse order of removal.
