1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
3. Remove the selector lever knob (AT), shift lever knob (MT).

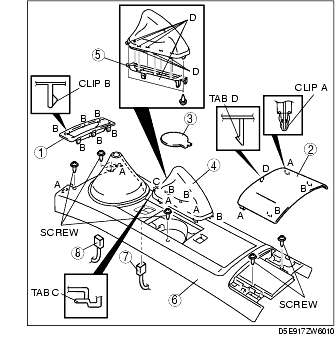

4. Remove in the order indicated in the table.
|
1
|
Front cover
|
|
2
|
Rear cover
|
|
3
|
Hole cover
|
|
4
|
Parking brake lever boot
|
|
5
|
Parking brake lever boot plate
|
|
6
|
Console
|
|
7
|
Power window main switch connector
|
|
8
|
Indicator compartment connector (AT)
|
5. Install in the reverse order of removal.
