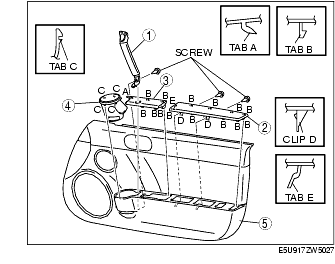

DOOR TRIM DISASSEMBLY/ASSEMBLY
id091700807600
1. Disassemble in the order indicated in the table.
1
Handle pull
2
Armrest
3
Switch panel
4
Cup holder
5
Door trim
2. Assemble in the reverse order of disassembly.
