AEROBOARD REMOVAL/INSTALLATION


id091700807700

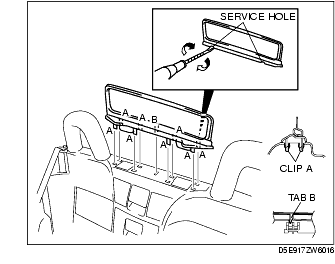

1. Insert a tape-wrapped flathead screwdriver into the service hole.

2. Twist the flathead screwdriver as indicated by the arrow to remove the clips A and tab B.

3. Remove the aeroboard.

4. Install in the reverse order of removal.
