SEAT BACK BAR GARNISH REMOVAL/INSTALLATION


id091700808000

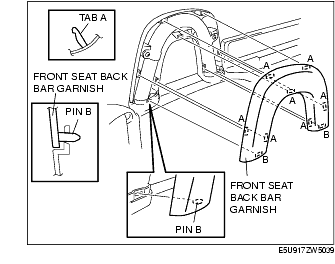

1. Pull the seat back bar garnish (front) outward and detach tabs A and pins B.

2. Remove the seat back bar garnish (front).

3. Remove the screws.

4. Pull the seat back bar garnish (rear) upward and detach clips A.

5. Remove the seat back bar garnish (rear).

6. Install in the reverse order of removal.
