SCUFF PLATE REMOVAL/INSTALLATION


id091700808100

Caution
• Pull up the scuff plate from the vehicle rear and remove it.

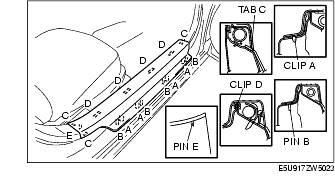

1. Pull the scuff plate upward while detaching tabs C, and then detach clips A and D, and pins B (4), E (1) from the body, and remove the scuff plate.

2. Install in the reverse order of removal.
