B-PILLAR UPPER TRIM INSTALLATION [DETACHABLE HARDTOP]

Note

• Double-sided adhesive tape has already been attached to the new rear door garnish.

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

1. When installing a new B-pillar upper trim, follow the procedure below:

(1) Remove the adhesive remaining on the body using razor.

(2) Remove any grease or dirt from the adhesion surface of the body.

2. When reusing the B-pillar upper trim, follow the procedure below:

(1) Remove the adhesive remaining on the B-pillar upper trim and the body using a razor.

(2) Remove any grease or dirt from the adhesion surface of the B-pillar upper trim and the body.

(3) Apply primer to the bonding area of the B-pillar upper trim.

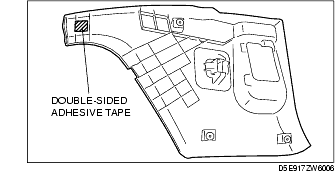

(4) Attach double-sided adhesive tape to the B-pillar upper trim as shown.

Note

• Use 3M GT7108 double-sided adhesive tape or equivalent.

3. Peel off the backing of the double-sided adhesive tape, then install the B-pillar upper trim to the detachable hardtop.
