FRONT FOG LIGHT SWITCH INSPECTION
id091800469900

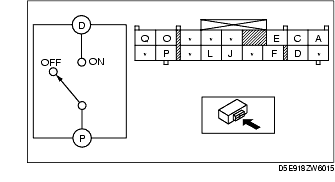

Left Side Of The Steering Column (Vehicle Without Rear Fog Light)
1. Verify that the continuity between the light switch terminals is as indicated in the table.
-
• If not as indicated in the table, replace the light switch.

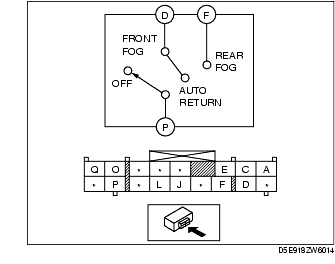

Left Side Of The Steering Column (Vehicle With Rear Fog Light)

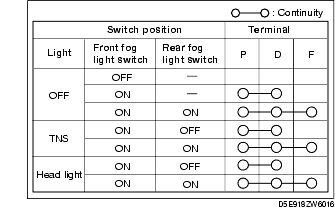

1. Verify that the continuity between the light switch terminals is as indicated in the table.
-
• If not as indicated in the table, replace the light switch.

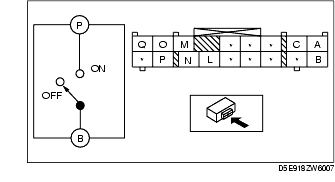

Right Side Of The Steering Column

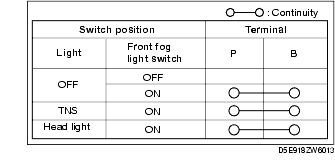

1. Verify that the continuity between the light switch terminals is as indicated in the table.
-
• If not as indicated in the table, replace the light switch.
