1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
3. Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION.)

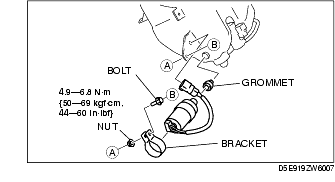

4. Remove the bolt, then remove the bracket.
5. Remove the headlight cleaner motor, then remove the grommet.
6. Install in the reverse order of removal.
