1. Remove the battery cover.
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)
3. Remove the fasteners, then slightly bend back the mudguard.
4. Disconnect the connector.

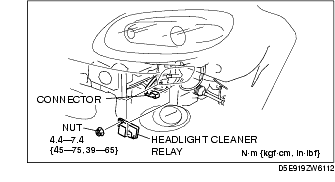

5. Remove the bolt, then remove the headlight cleaner relay.
6. Install in the reverse order of removal.
