AUDIO CONTROL SWITCH CONSTRUCTION/OPERATION


id092000100600

Construction

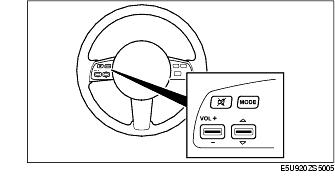

• The audio control switch is located on the steering wheel.

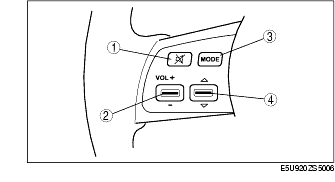

Operation

No.

Button (component)

Function

1
Mute button
Mute
2
Volume switch
Volume up/down
3
Mode button
Selects the audio mode
(FM1→FM2→AM→CD→(MD)→AUX)
4
SEEK switch
Selects radio stations
