CENTER PANEL UNIT CONSTRUCTION
id092000101500
Structural View
amxzzn00000669
|
|
1
|
Center panel
|
|
2
|
Base unit
|
|
3
|
Audio unit
|
|
4
|
Lower module
|
|
5
|
Cover
|
|
6
|
Climate control unit
|
Terminal Layout and Signal
Audio unit
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Door speaker LH (+) / Door speaker RH (+)*1
|
|
1B
|
B+ (Power back up)
|
|
|
1C
|
Door speaker LH (–) / Door speaker RH (–)*1
|
|
|
1D
|
Door speaker RH (+) / Door speaker LH (+)*1
|
|
|
1E
|
TNS (+)
|
|
|
1F
|
Door speaker RH (–) / Door speaker LH (–)*1
|
|
|
1G
|
Illumination (–)
|
|
|
1H
|
Antenna control
|
|
|
1I
|
Vehicle speed signal*2
|
|
|
1J
|
AMP control*3
|
|
|
1K
|
UART–1
|
|
|
1L
|
—
|
|
|
1M
|
UART–2
|
|
|
1N
|
Audio control switch 1
|
|
|
1O
|
—
|
|
|
1P
|
Audio control switch 2
|
|
|
1Q
|
—
|
|
|
1R
|
ACC
|
|
|
1S
|
Rear speaker LH (+) / Rear speaker RH (+)*1
|
|
|
1T
|
Audiopilot control*3
|
|
|
1U
|
Rear speaker LH (–) / Rear speaker RH (–)*1
|
|
|
1V
|
Rear speaker RH (+) / Rear speaker LH (+)*1
|
|
|
1W
|
Power ground
|
|
|
1X
|
Rear speaker RH (–) / Rear speaker LH (–)*1
|
|
|
Terminal |
Signal |
|
|---|---|---|
 |
2A
|
Power ground
|
|
2B
|
System mute
|
|
|
2C
|
Input signal RH (+)
|
|
|
2D
|
Input signal RH (–)
|
|
|
2E
|
Input signal LH (+)
|
|
|
2F
|
Input signal LH (–)
|
|
|
2G
|
Signal ground
|
|
|
2H
|
TEXT DATA
|
|
|
2I
|
TEXT CLK
|
|
|
2J
|
TNS (+)
|
|
|
2K
|
BUS (–)
|
|
|
2L
|
BUS (+)
|
|
|
2M
|
AUX control
|
|
|
2N
|
Illumination (–)
|
|
|
2O
|
ACC
|
|
|
2P
|
+B
|
|

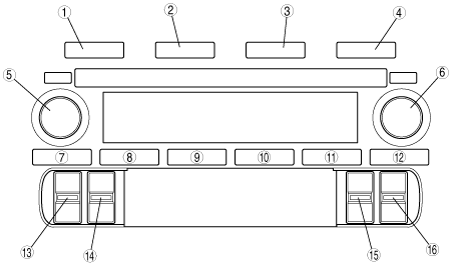

Button and switch Location
amxzzn00000672
|
|
No. |
Type A |
Type B |
|---|---|---|
|
1
|
FM 1/2 button
|
|
|
2
|
AM button
|
|
|
3
|
CD button
|
|
|
4
|
MEDIA button
|
|
|
5
|
POWER/VOLUME button
|
AUDIO CONT/TUNE/TEXT button
|
|
6
|
AUDIO CONT/TUNE/TEXT button
|
POWER/VOLUME button
|
|
7
|
Preset button 1
|
|
|
8
|
Preset button 2
|
|
|
9
|
Preset button 3
|
|
|
10
|
Preset button 4
|
|
|
11
|
Preset button 5
|
|
|
12
|
Preset button 6
|
|
|
13
|
SEEK switch
|
Fast-forward/Reverse switch
|
|
14
|
CLOCK switch
|
|
|
15
|
TA/AUTO-M switch
|
SCAN/AUTO-M switch
|
|
16
|
AF/PTY switch
|
SEEK switch
|
