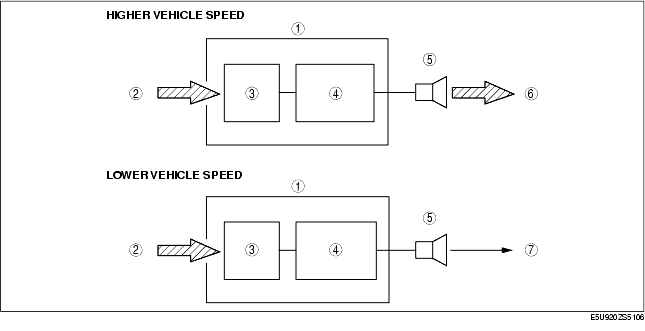

• The audio unit changes the volume automatically based on the vehicle speed signal sent from the instrument cluster.
|
1
|
Audio unit (base unit)
|
|
2
|
Vehicle speed signal
|
|
3
|
ALC circuit
|
|
4
|
Power amplifier
|
|
5
|
Speaker
|
|
6
|
Higher volume
|
|
7
|
Normal volume
|
• The ALC function is divided into seven modes that can be used effectively to match the driving conditions.
