AUDIO CONTROL SWITCH INSPECTION

id092000800300

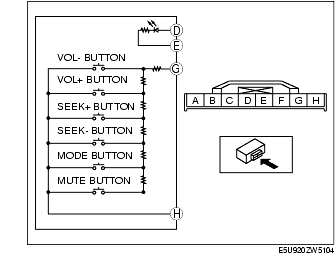

1. Verify the resistance and continuity between the audio control switch terminals.

• If the resistance and continuity are not as indicated in the tables, replace the audio control switch.

R :
Resistance. See the table.

Switch position

Resistance (ohm)

VOL- switch ON
51-56
VOL+ switch ON
140-154
SEEK+ switch ON
286-315
SEEK- switch ON
534-589
MODE switch ON
985-1,080
MUTE switch ON
1,940-2,130
OFF
4,800-5,290
