AUDIOPILOT MICROPHONE REMOVAL/INSTALLATION

id092000806300

Note
• "AudioPilot" is a registered trademark of Bose Corporation.

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [L8, LF].)

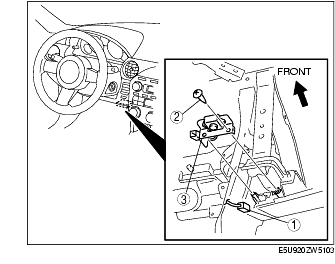

3. Remove in the order indicated in the table.

1
Connector
2
Screw
3
AUDIOPILOT microphone

4. Install in the reverse order of removal.
